SMP-2400
FEATURES SPECS STRUCTURE DOWNLOADS

SYSTEM SPECS

System Software
Content Creation
Zone type
  • Able to use CAYIN Skin Editor to create templates either directly on SMP players or on your PC
  • Display zone:
    • Video zone x 2 (video file/streaming/audio)
    • HTML zone x 3
    • Image zone x 2
    • Ticker zone x 2
    • Clock zone x 1
    • Background image x 1

Full-screen
  • Use any web-editing tool to create HTML pages with unlimited Video zones, Image zones, and Ticker zones (*Depending on Hardware Spec)
Multimedia Playback

Web Pages
  • Browser: Firefox
  • Web language: support HTML 5 (*1), JavaScript and RSS/ATOM Feed
  • CAYIN Media Player (Video and Audio),
    CAYIN Ticker, CAYIN Image Slideshow
  • Content: show whole or part of HTML/PDF files, remote URL, weather, social media
    or integrate with users’ network facilities and databases

Streaming Video
  • CAYIN RTB (MPEG4-TS, MPEG2-TS; bit rate: 1~5 Mbps)
  • RTSP (Codec: H.264; bit-rate: 1~20 Mbps)
  • RTP (MPEG-2, MPEG-4, bit rate:1-10 Mbps)
  • HTTP/MMS

Video Files
  • Format: MPEG (MPG, VOB), AVI (H.264), WMV, MP4
  • Codec: MPEG-1/2, MPEG-4 ISO, WMV 7/8/9, H.264, H.265(HEVC)
  • Bit-rate: up to 40 Mbps, 60 fps (MPEG2, MPEG4, WMV, H.264) for 1080p, 65 Mbps, 60 fps (H.264, H.265) for 4K UHD
  • Resolution: up to 4K UHD 60 fps

Audio Files
  • Format: WMA, MP3
  • Codec: MP3, WMA 7/8, AAC, Vorbis

Image Files
  • Format: JPEG/GIF/BMP/SVG

Preview
  • Playback simulator: image, HTML, remote URL, and ticker
  • File preview: show thumbnails for image and video files

Playback modes
  • 3 options: Skin, Program, and Playlist



(*1) The compatibility is based on the built-in Firefox browser.
Schedule
Playback
  • Local & central scheduling: edit schedules directly on an SMP player or centrally control multiple players in groups by a CMS server
  • View type: calendar or time table
  • Schedule mode: once, daily, weekly, monthly, yearly, and location
  • Playback type: able to edit scheduled tasks for each zone or as a full-screen display

Screen, brightness ,volume & system
  • Set schedules to turn on/off the screen, adjust SMP’s volume and brightness, or restart the system
Content Update
Methods
  • Online (manually): FTP, Network Shares (Network Neighborhood), SMP’s Web Manager
  • Online (automatically): CAYIN CMS server
  • Offline: USB Storage Device
System Settings
Language
  • User Interface: Chinese (Traditional), Chinese (Simplified), English, French, German, Italian, Japanese, Polish, Portuguese, Russian, Spanish, Thai
  • Ticker Support: Unicode (UTF-8) compatible languages; able to use default fonts or upload TTF fonts (*2).

Display
  • Screen resolutions: 640x480, 800x600, 1024x768, 1152x864, 1280x720 (720p), 1280x768, 1280x1024, 1360x768, 1366x768, 1600x900, 1600x1200, 1680x1050, 1920x1080, 1920x1200, 1920x1440, 3840x2160 (60Hz,Single/Clone mode only); up to 4096 pixels for one side by User-defined mode
  • Portrait Mode: Support 90 and 270 degree display rotation
  • 4 signal output modes: Single, Clone, Extended, Distinct Modes
  • Support to detect EDID/DDC parameters
  • Support the screensaver function
  • Support to incorporate with USB HID compliance touch screen and multi-touch gestures

Time
  • Set system time manually or synchronize the clock from an NTP server

Location
  • Track SMP’s current location by GPS or simply show a static location in Google Maps


(*2) CAYIN doesn’t guarantee that SMP-NEO is compatible with all font files.
Remote Diagnostics and Maintenance
Log
  • Create log files recording the system status
  • Compatible with SuperReporter 2 (sold separately) to generate advanced playback reports

Hardware Monitor
  • Check CPU temperature, fan speed, and utilization of CPU, system DRAM, and hard drive

System Update
  • Automatic notification of patch and firmware updates

Self-repair
  • Able to restart/shutdown/recover the system and backup/restore configurations remotely.
Network
Protocol
  • Support static IP and dynamic IP (DHCP)
  • Support HTTP, HTTPS, SMB, ICMP, RTP, RTSP, MMS, SYSLOG, NTP, FTP
  • Built-in Firewall Management
Resources
Cloud-based
  • Provide templates and materials in Library and Online Resources
Web Manager
Recomm­ended Browsers
  • Chrome88 or later, Edge 88 or later, Firefox 85 or later

HARDWARE SPECS

CPU
INTEL® Elkhart Lake Quad-Core Processor
Dimension
159 (W) x 108 (D) x 48 (H) mm
Weight
1.09 Kg
Network
2.5GbE Ethernet
802.11 b/g/n/ac Wireless controller (optional)
3G/4G data network (optional)
Internal Storage
SSD 128GB (Optional Upgrade: up to 256GB)
External Storage
Supports up to 4TB
Video
HDMI x 2
DP x 1
Audio
Phone Jack (Analog Stereo)
HDMI Audio (Digital)
Support AV-in
HDMI Capture Card (USB UVC compatible device, Format: MJPG)
Power
100~240V AC (with external adaptor)
DC 12V, 3.3A
Others
RS-232 (COM) x 1
USB x 3.1 x 2
USB x 2.0 x 1
USB (TypeC) x 2
Peripherals
Wall mount bracket x 1 (compatible with VESA 75x75/ 100x100)
Certificate
CE, FCC, RoHS, CB, BSMI

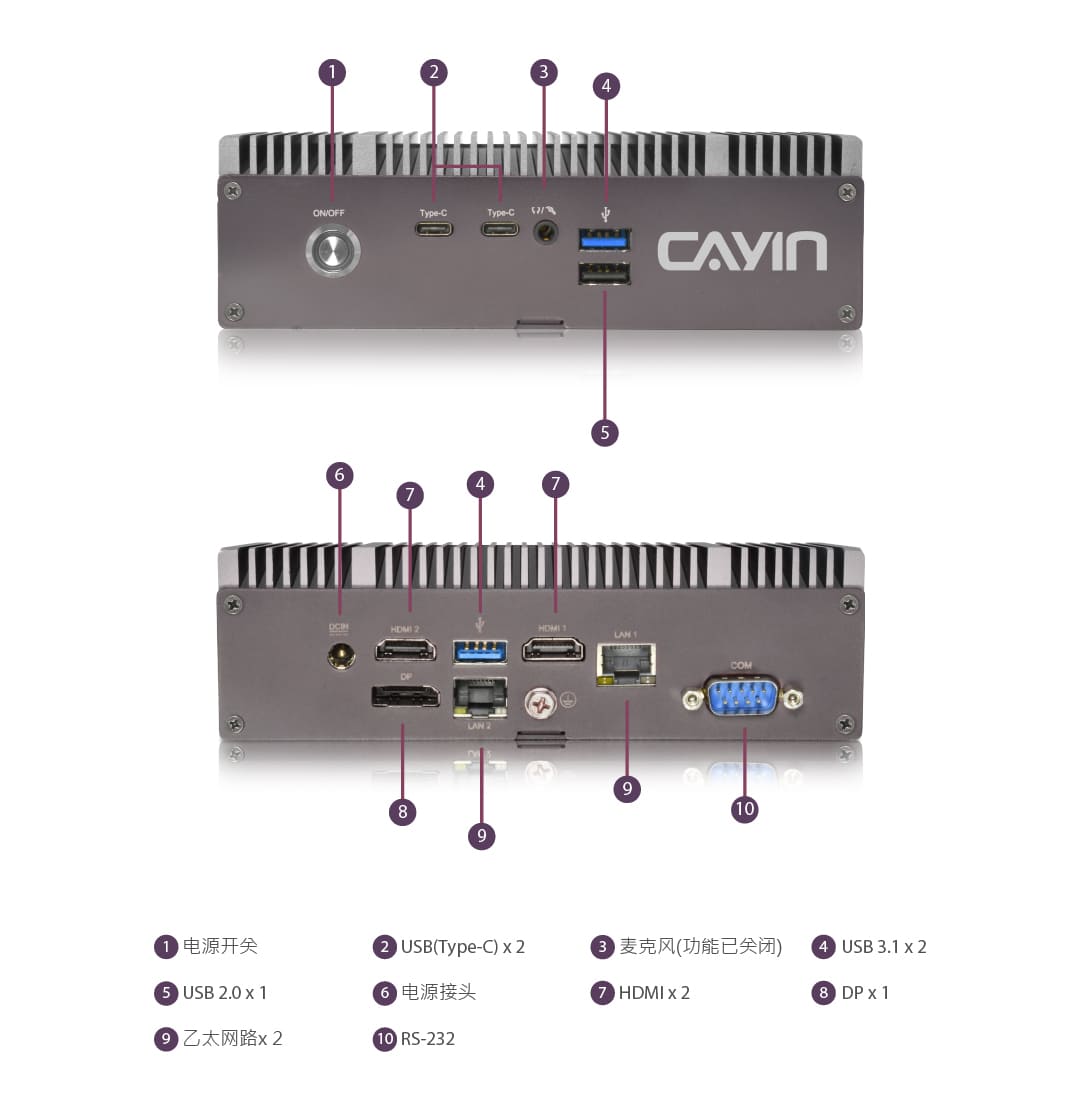

SMP-2400 Front View & Rear View
* All specifications subject to change without notice.
